Air Inlet Funnel

LET40

With the air inlet funnel you can comfortably and easily conduct air from ceiling air outlets into the air samplers LKS 30 and LKS100. This allows for sampling of air from ventilation systems without drawing external air.

Accessory to LKS 30 and LKS100
Large inlet area of 40 x 40 cm
Foldable to a length of just 39 cm
Windproof and wipeable nylon textile
Robust spring steel rods
Magnetic fixing for fast assembly and disassembly

For isokinetic microbiological air samplings within the system, e.g. inside of air ducts, we recommend the transverse adapter with the corresponding inlet nozzles.

Application

Using the air inlet funnel is easy and secure:

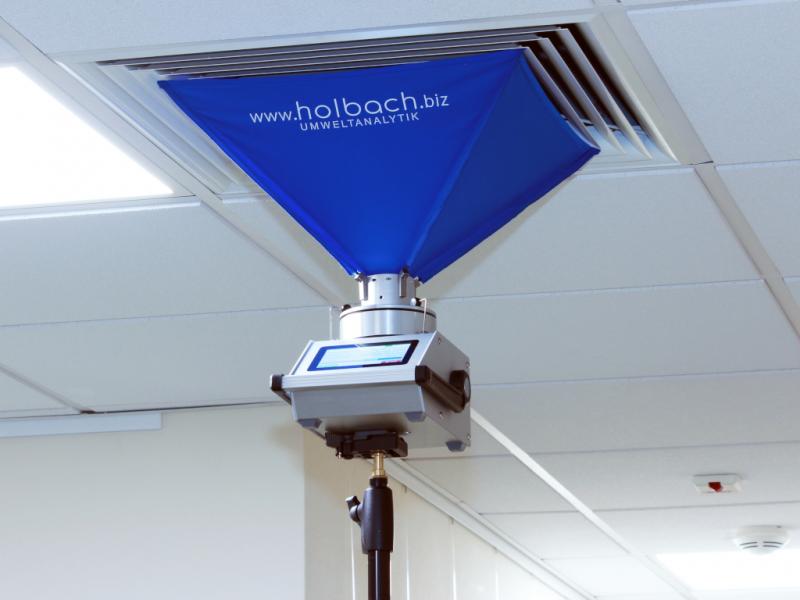

Prepare the sampling device while the tripod is low and start the sampling with starting delay. During the delay, position the device with the air inlet funnel under the air outlet grid. Done.

Downloads

Downloads for this product:

Data Sheet LET40

Operating Manual LET40

Downloads
Application

Downloads for this product:

Data Sheet LET40

Operating Manual LET40

Further Information

Easy Handling

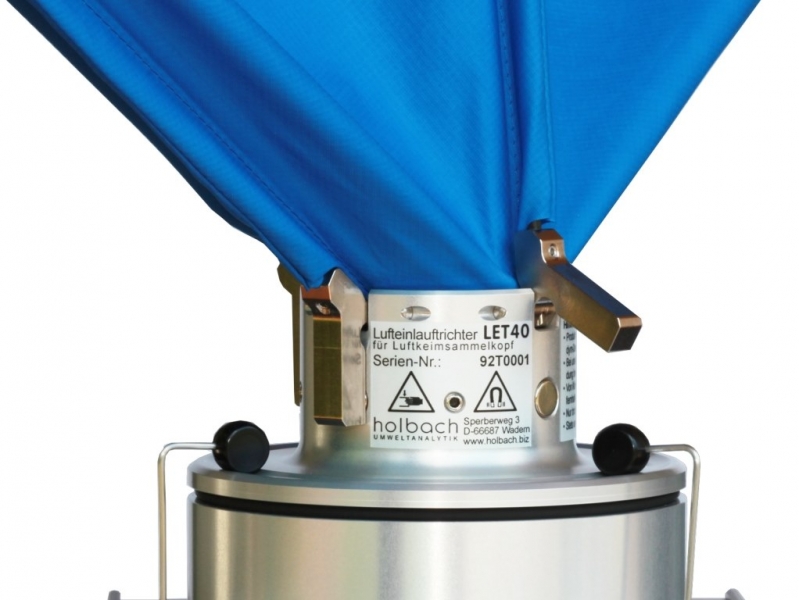

Setting up the air inlet funnel is quick and easy: LET40 is just put onto the air sampler instead of the normal upper part and fixed with the locking springs. Four strong neodymium magnets hold the carbon rods in their end positions. That way, the funnel is immediately ready for operation after folding it open.

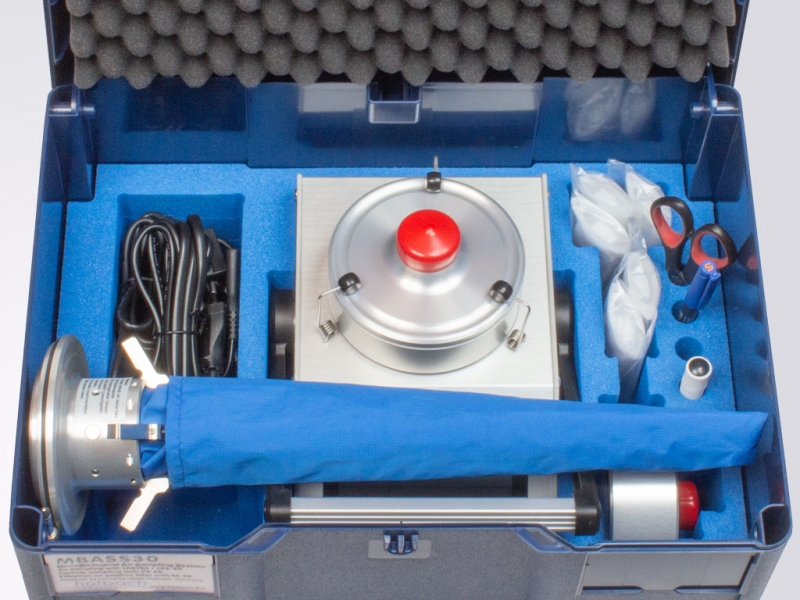

When folded, LET40 fits in the handling case for MBASS30 together with other accessories.

Therefore, LET40 is ideally suited even for opertions with many measuring points.
